This machine is independently developed by chaosheng automation equipment  Co.,Ltd and has obtained the national invention patent.Compared with other products on the market, our equipment has the following advantages:

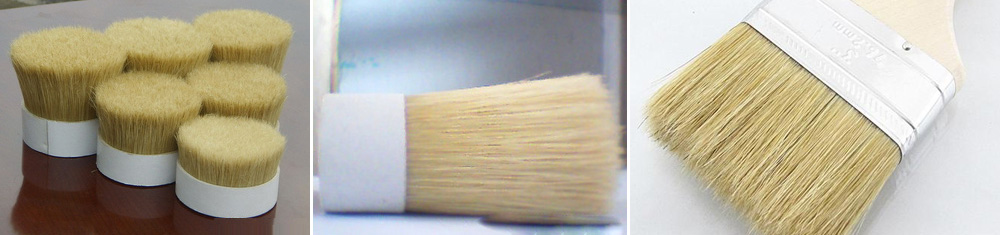

1. The baffle height is adjustable, which can be divided into bristles, fibril, miscellaneous hair and other common market materials with the length equal or more than 40mm;

2. Large weight range: suit for 5 grams to 100 grams ;

 3,High accuracy and small error: the error within 10 grams can be guaranteed to be within 0.5;The error of more than 10 grams shall be controlled within 1 gram;

4. Stable performance, convenient operation and maintenance.The feeding pressure of our company adopts dc tooth box motor to regulate voltage and current.

5, Important elements are adopted  famous brand:

PLC	WEINVIEW
Servo motor	Schneider
PLC	Delta
Cylinder	Airtag
solenoid valve	EMC
Straight line rail	TPI(China）

Spcification

Description	Fibre distributor for paint brush

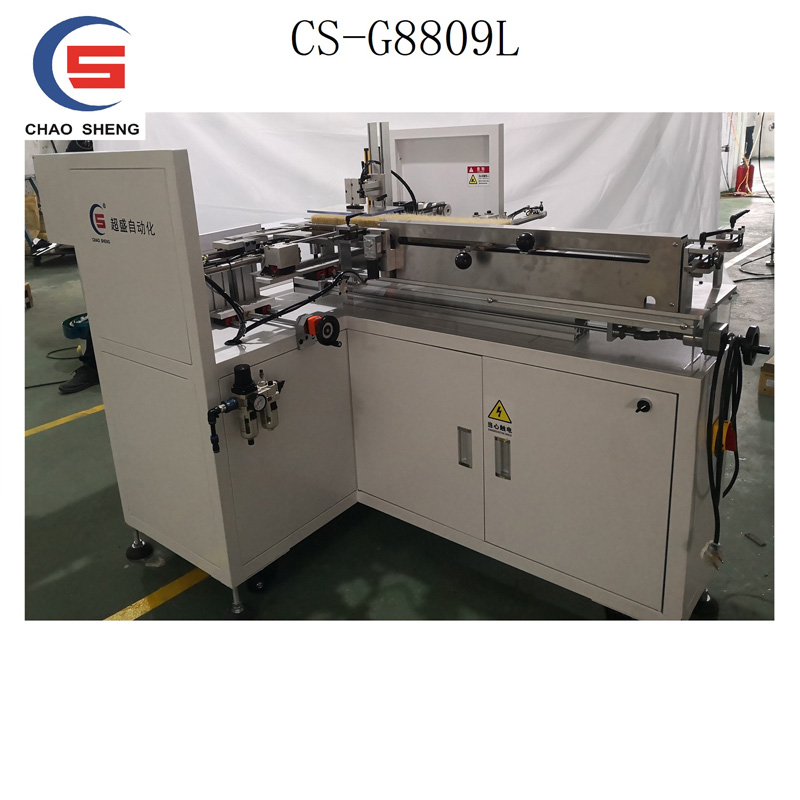

Model：	CS-G8809L
Oversize :LXWXH	1700*1100*1400mm
G.W	800kgs
Voltage	AC220V 50Hz
power	2.2KW
air pressure	1.2m³/hour（ 0.5~0.8Mpa air pressure）
Capacity	2seconds / bunch
Warranty Period	1 year
