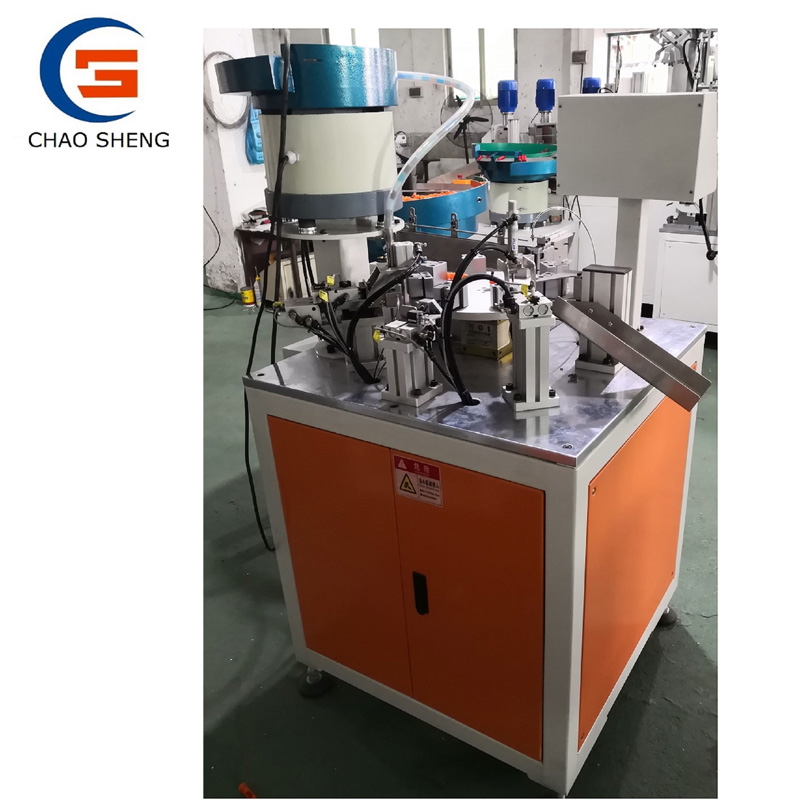

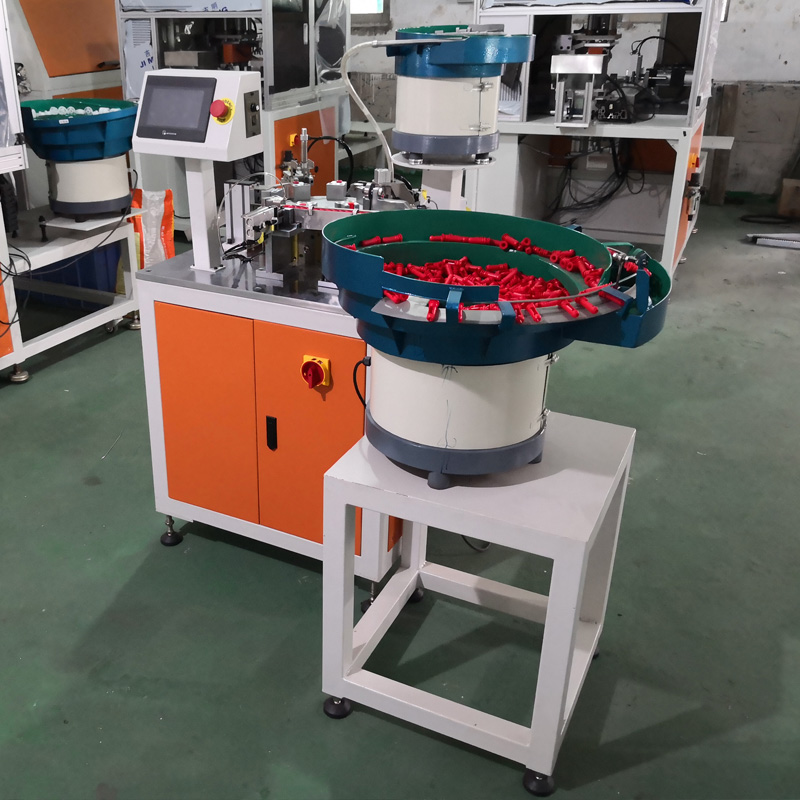

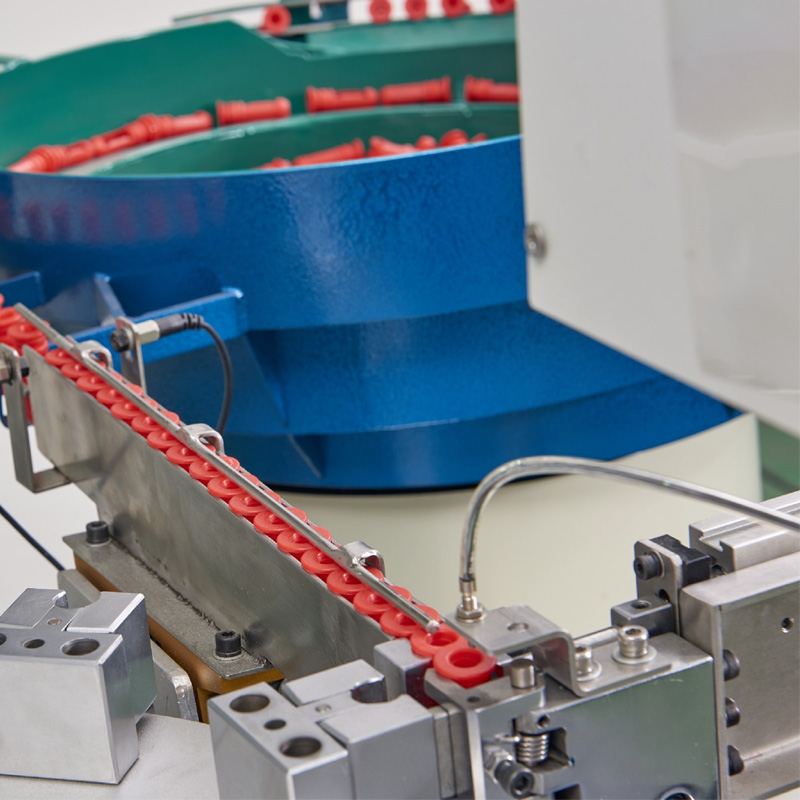

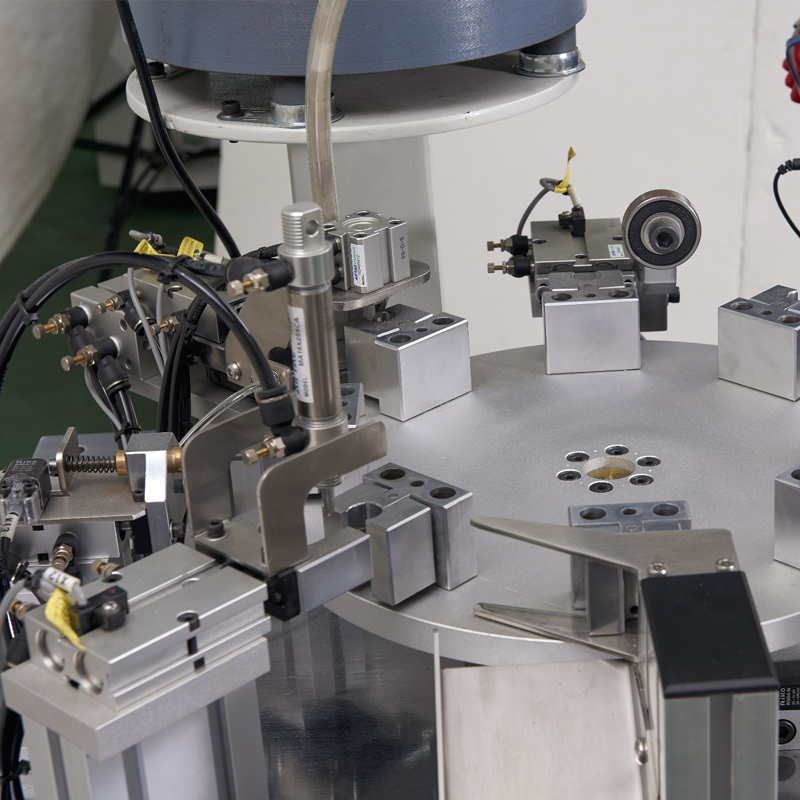

Chaosheng Automatic assembly of the clips inside the caps is adopted the advanced automation design idea at present. Controlled by Electric integrated design PLC programming and Process parameters of various products in the operating Interface of the system Touch screen Flexible setting, real-time monitoring of each action in operation, automatic detection of incoming machine sensors for assembly and processing, automatic stop alarm warning of abnormal action faults, convenient maintenance and processing. The rubber plug is arranged in the direction automatically, the clamp is fed automatically, the splitter is positioned in 8 positions, the rubber plug is positioned and the guide is fixed, the clamp leak is detected, the clamp leakage is eliminated automatically, which saves the customer labor. General customized Small paint roller caps.

Specification

Oversize: L*W*H	1300*1000*1300mm
GW	350kgs
Voltage	AC220V / 50Hz
Power	1.5KW
Air consumptioin	1.2m³/H（ 0.5~0.8Mpa Aire pressure）
Capacity	2400pcs/Hour
suitable dia.of mini paint roller:	15mm~30mm (one dia use one machine)
