Automatic cage-wire assembly machine for heavy duty paint roller adopted the advanced automation design idea.
Controlled by Electric integrated design PLC programming and Process parameters of various products in the operating Interface of the system Touch screen. Flexible setting,
real-time monitoring of each action in operation, automatic detection of incoming machine sensors in need of assembly, automatic stop alarm warning of abnormal action faults,
convenient maintenance and processing.

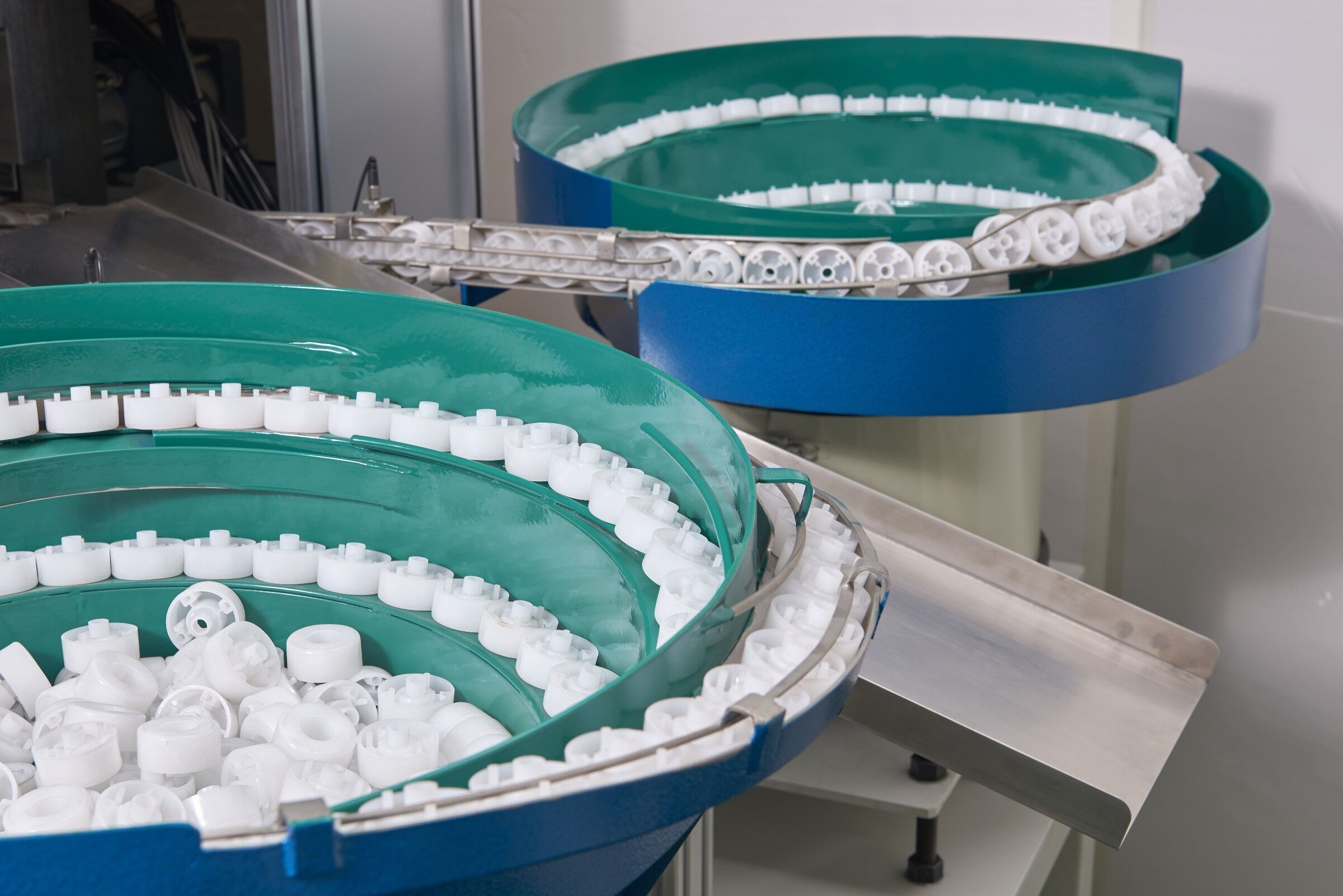

Automatic positioning of plastic wheels feeding, automatic distribution of iron wire, automatic assembly, product delivery integrated function, for customers to save labor, reduce
production cycle time, reduce production use site.
Conventional applicable for :length 9inches x ø38mm x4 lines, length 9inches x ø38mm x 5 lines, length 9inches x ø44mm x 5 lines, and other customized models.

Speicification

Overside: L*W*H	L*W*H 1800*1400*1600mm
Total weight	0.8T
Voltage	AC220V / 50Hz
Power	2.2KW
Compressed air consumption	1.2m³/H（ 0.5~0.8Mpa air pressure）
Capacity	700pcs/H

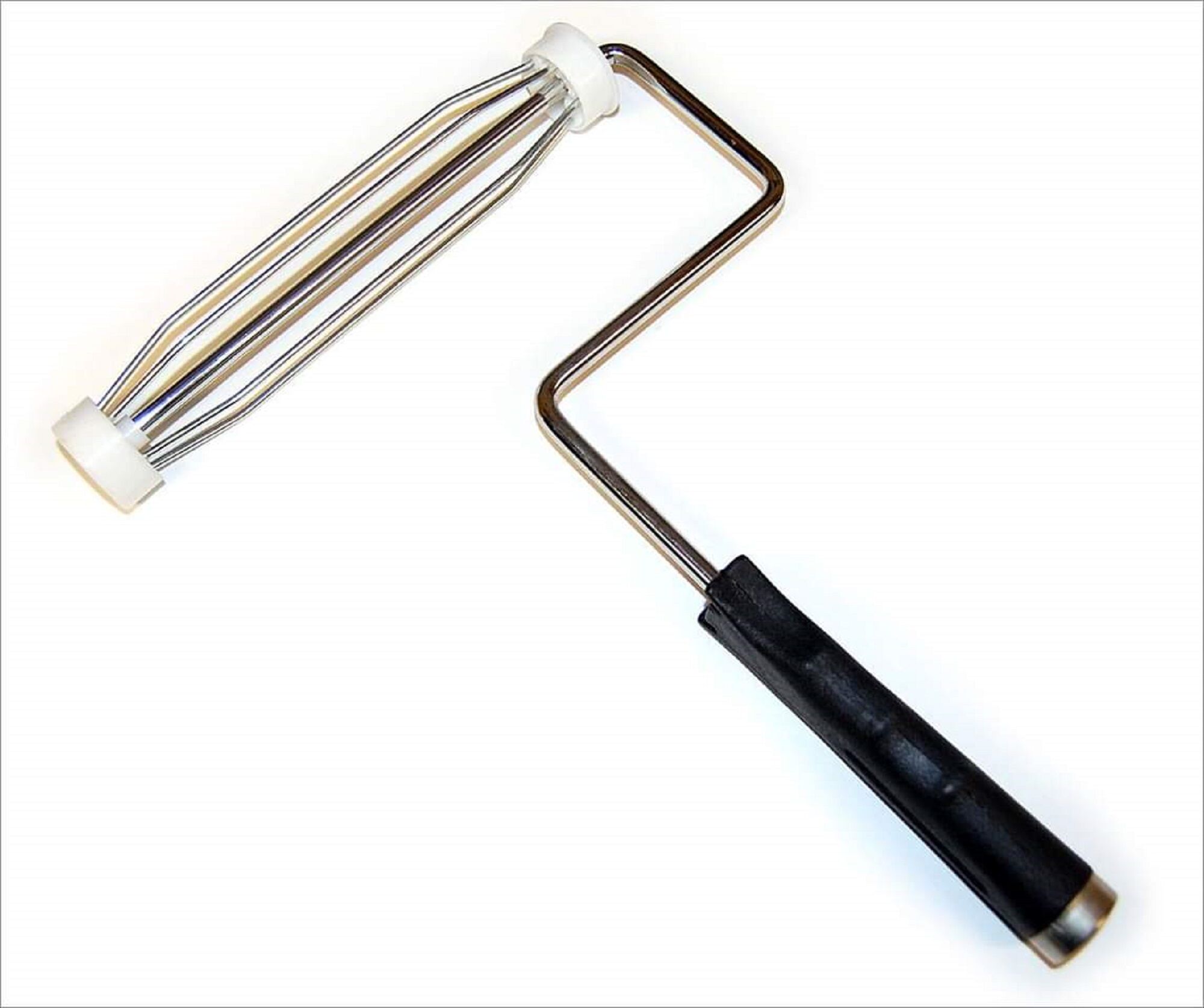

workable length of paint roller	9”x ø38mm x4 lines/9" x ø38mmx5 lines/ 9"x ø44mmx4 lines/9"x ø44mm X 5 lines,
